Dissolved Hydrogen H2 in Transformer Oil – Sensor Modules – 0-2000 μL/L and 0-5000 μL/L
Product Code: 2112B6001A
Quick Overview
Dissolved Hydrogen H2 in Transformer Oil - Sensor Modules - 0-2000 μL/L and 0-5000 μL/LSensor Modules to measure dissolved H2, which can be mounted directly on transformer valve or in oil phase.Typical applications:- Power transformers
- Energy
- Power plants
- Safety monitoring
- Industrial plants
- Electric power
- Mining
- Petrochemical
Add to enquiry
More Views
Details
Gas sensor modules for Dissolved Hydrogen H2 in Transformer Oil
Measuring Ranges: 0-2000 μL/L and 0-5000 μL/L
Module A, part no: 2112B6001A
Measuring Range: 0-2000 μL/L
Can be mounted directly on transformer valve
Composite Concentration of H2, CO, C2H4 and C2H2
Module B, part no: 2112B6001B
Measuring Range: 0-2000 μL/L
Can be mounted directly on transformer valve
Concentration of H2

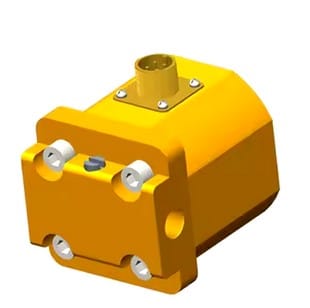

Module C, part no: 2112B6001C
Measuring Range: 0-5000 μL/L
Can be mounted directly in oil phase
Concentration of H2
The ECOSense dissolved Hydrogen (H2) gas sensor modules are designed for the detection of dissolved H2 in transformer oil.
When there is a fault within a transformer, H2 will be generated, where the concentration of H2 is proportional to the level of fault. H2 is a critical early indicator. It is the first gas released as temperatures rise inside a transformer, sometimes weeks or months before a failure. Real-time hydrogen sensing offers the earliest possible warnings. Hydrogen gas levels rising are a critical first line of defense, so that action can be taken before a situation becomes an emergency, from an outage to a serious fire.
Based on fuel cell patented technology, combined with years of field experience, the sensor detects and monitors dissolved Hydrogen in transformer oil and ensures the safe operation of transformers, shunts, reactors, bushing and
further applications. The sensors are integrated at the heart of on-line monitors worldwide.
The modules are available in 3 different versions:
• Module A – can be mounted directly on transformer valve, where there is a composite concentration of H2, CO, C2H4, C2H2.
• Module B – can be mounted directly on transformer valve, where there is H2 concentration only.
• Module C – can be mounted directly in oil phase. This uses sensor module B incorporated within a different housing type. It is suitable for an H2 concentration only. Volume of oil chamber: 1ml.
The modules are a unique design of high performance gas sensor with a number of technological benefits:
- Industrial Gas Sensor with multiple patents
- Integrated gas separation and detection
- Designed to withstand vacuum conditions
- Free from poisoning and electrolyte leakage
- Precise control of internal environment and free from environmental influences
- Designed for Hydrogen detection in harsh environments
- Maintenance free
- High stability, fast response and wide detection range
- Long service life of over 10 years
Note: Please refer to individual datasheet for detailed information on this sensor and its dimensions.
Available options:
– Available in housed detector
– H2 sensors in standard 4 series and micro sizes for air and safety applications
