Oxygen O2 Composting & Soil Probe 0.1-25% vol O2
Product Code: 2112B0500
Quick Overview
Oxygen O2 Composting and Soil Probe for measuring Oxygen levels in composting, soil and ground applications, 0.1-25% volume O2.
Add to enquiry
Details

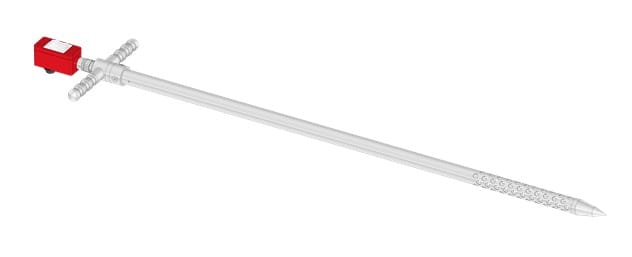

Oxygen O2 Composting & Soil Probe
Measuring Range: 0.1-25% vol. O2
Part no:
2112B0500 – standard model for measuring O2 levels in composting, soil and ground applications.
2112B0500E – optional exhaust air model version
Power supply: 24V d.c. Output: analogue 4-20mA
The Oxygen O2 Composting & Soil Probe has been developed for measuring Oxygen levels in composting, soil and ground applications.
Measurement is linear and based on advanced zirconium dioxide technology. Output is analogue 4-20mA. Calibration can be performed in atmospheric air, without the need for reference gas. During operation, the probe system monitors its function and reports if there is any hardware or sensor malfunction.
The advantages of this probe system include:
- Designed for difficult environmental conditions posed by composting and soil applications.
- Easy calibration. No reference gas required.
- High precision and sensitivity.
- Fast response time.
- Long life time.
- Wide temperature range of -40° C to +100° C for the rod probe (and -40° C to +50° C for the electronics).
Note: Please refer to manual for detailed information on this product.
Available accessories:
– Screwable connector for Compost Probe cable, part no. 2112B050010
– Connection Cable options 10m, 25m and 75m
– Temperature probe
