Chlorine Cl2 SureCell Gas Sensor, 0-20ppm

Details

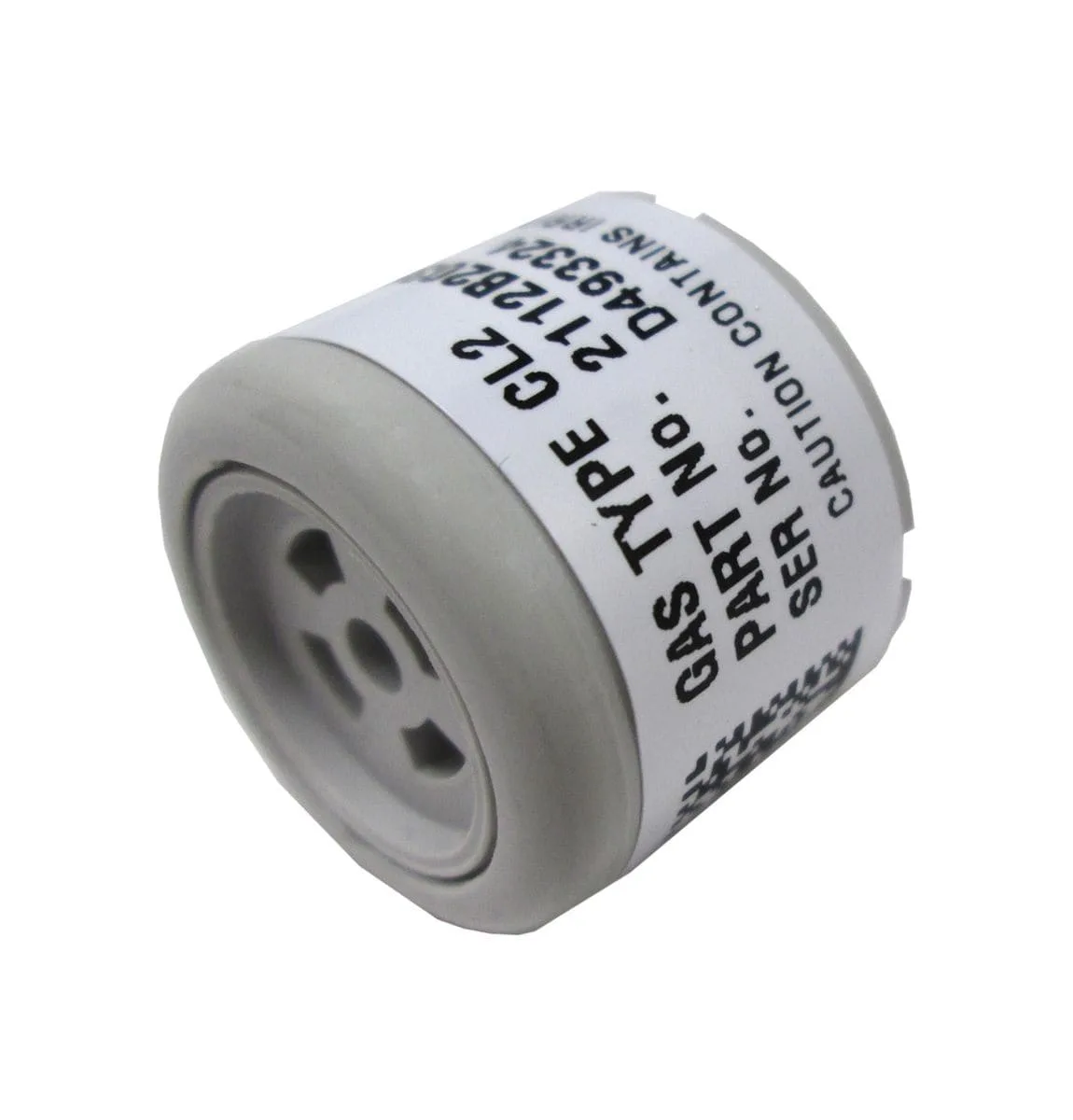

Chlorine Cl2 SureCell gas sensor

Measuring Range: 0-20ppm Cl2. Maximum Overload: 50ppm Cl2

Size: 4 series

Part no: 2112B2035

With two year expected operating life, this low range, 4-series standard sized sensor is a high specification sensor utilised for industrial applications. It is one of the next generation of OEM gas sensors from Sixth Sense. Available as this single sensor, in combination with a 4-20mA transmitter or as a complete housed solution.

SureCell is a revolutionary design of high performance electrochemical gas sensor. The unique features of SureCell and the potential advances for end product performance, make SureCell a truly cost-effective solution for gas detection equipment manufacturers and installers.

Based on over 35 years of R&D, SureCell embodies a number of technological advances to offer unprecedented performance in even the harshest environmental conditions:

• The unique internal construction of SureCell ensures indefinite operation in extreme temperatures and humidity.
• Even during extended periods of exposure to high humidity, there is no leakage potential or signal loss.
• Further design features provide reduced cross-sensitivity and increased stability.
• Improvements in mechanical design ensure SureCell is high quality, reliable and dependable.
• Advanced production processes, with unique fully automated production, result in a sensor that is both cost effective and available in high volumes.

Please refer to individual datasheet for detailed information on this sensor and its dimensions.

Available options:

– SureCell Cl2 4-20 mA transmitter including sensor, 0-20ppm Cl2 (Optional: 0-10ppm) (part no. 2112B1035)

– SureCell Cl2 transmitter installation kit (part no. 2112B1022)

– Cl2 gas measuring system – SureCell Cl2 sensor, 4-20 mA transmitter and installation kit in aluminium housing, 0-20ppm Cl2 (part no. 2112B1018)

– SS sensor, 0-50ppm or 0-200ppm Cl2 (part no. 2112B2037/2112B2038)
