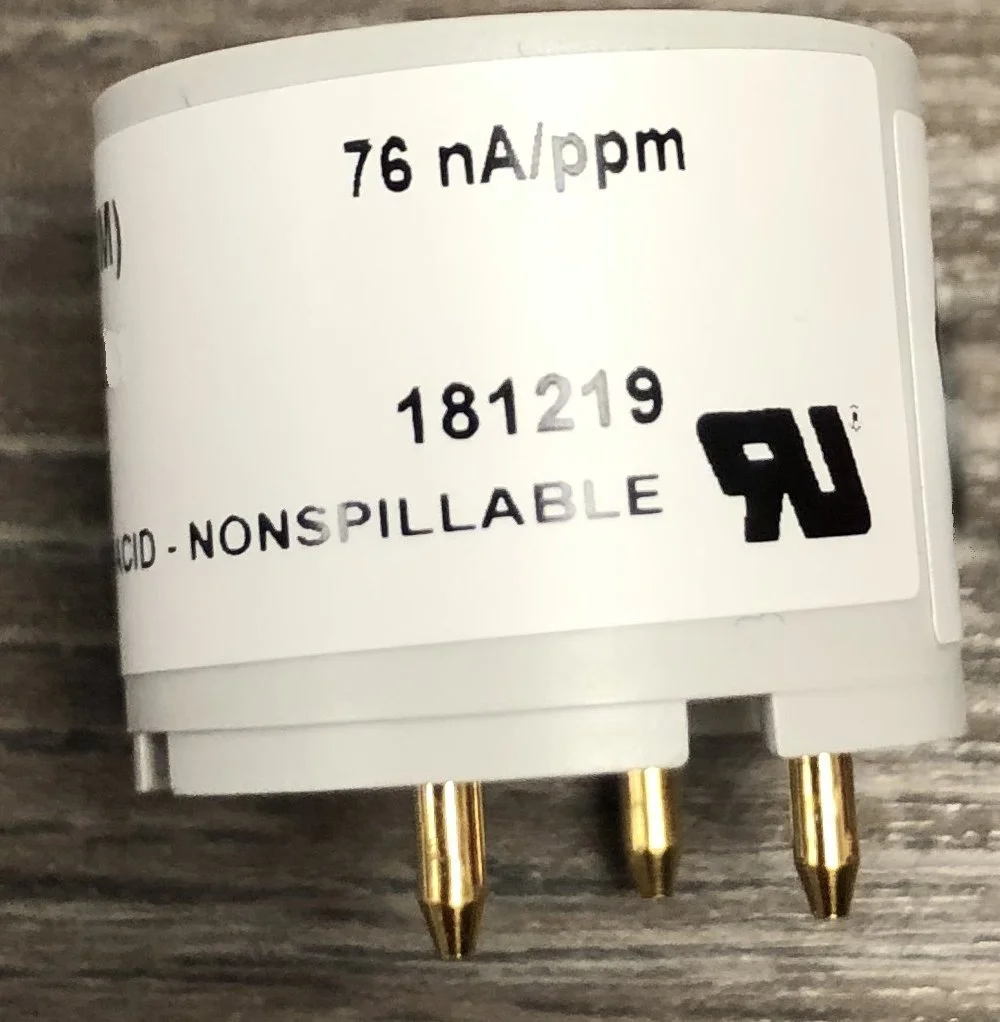

SureCell CO (M) CO Carbon Monoxide Gas Sensor, 0-1000ppm

Details

Carbon Monoxide CO SureCell CO (M) gas sensor

Measuring Range: 0-1000ppm CO. Maximum Overload: 2000ppm CO

Size: 4 series

Part no: 2112B2003

The next generation of OEM gas sensors from Sixth Sense. Available as single sensors, in combination with a 4-20mA transmitter or as a complete housed solution.

SureCell is a revolutionary design of high performance electrochemical gas sensor. The unique features of SureCell and the potential advances for end product performance, make SureCell a truly cost-effective solution for gas detection equipment manufacturers and installers.

With two year expected operating life, this 4-series standard sized sensor is a high specification sensor utilised for industrial applications.

Based on over 30 years of R&D, SureCell embodies a number of technological advances to offer unprecedented performance in even the harshest environmental conditions:

• The unique internal construction of SureCell ensures indefinite operation in extreme temperatures and humidity.
• Even during extended periods of exposure to high humidity, there is no leakage potential or signal loss.
• Further design features provide reduced cross-sensitivity and increased stability.
• Improvements in mechanical design ensure SureCell is high quality, reliable and dependable.
• Advanced production processes, with unique fully automated production, result in a sensor that is both cost effective and available in high volumes.
• Also available with 4-20mA transmitter, installation kit, Gas Measuring System and test/calibration gas cap.

 Please refer to individual datasheet for detailed information on this sensor and its dimensions.

 Available options:

 – SureCell 4-20 mA transmitter including sensor, 0-1000ppm CO (Optional: 0-100ppm, 0-200ppm) (part no. 2112B1020)

 – SureCell transmitter installation kit (part no. 2112B1022)

 – Gas Measuring System – SureCell sensor, 4-20 mA transmitter and installation kit in aluminium housing, 0-1000ppm CO (Optional: 0-100ppm, 0-200ppm) (part no. 2112B1023)

– SS PCB i2c/Voltage transmitter precalibrated with sensor (part no. 2112B019900)
