NO2-5 SS Micro TX Transmitter 0-5ppm

Product Code: 2112B0127505

Quick Overview

NO2 SS Micro TX Nitrogen Dioxide Transmitter Module

Range: 0-5ppm. Nitrogen Dioxide advanced solid state micro sensor technology precalibrated in integrated transmitter with UART digital output.

Add to enquiry

Details

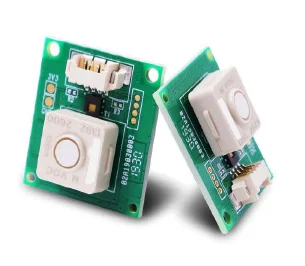

NO2-5 SS Micro TX Nitrogen Dioxide Transmitter Module

NO2 advanced solid state micro sensor technology precalibrated in integrated transmitter with UART digital output.

Range: 0-5ppm NO2

Measures Nitrogen Dioxide

Resolution: 0.001ppm. Lowest Detection Limit (LDL): 0.05ppm

Power supply: 3.3 – 5.5Vdc

Part no: 2112B0127505

DOWNLOAD DATASHEET

The NO2 SS Micro TX Nitrogen Dioxide module offers high-precision technology in both sensor and circuitry. The integrated sensor uses the world’s smallest solid polymer sensor. It can replace our nose to ‘sniff out’ gas concentration and provides accurate gas detection.

The module uses UART digital output, enabling ease of use and eliminating the need for customers to understand detailed technical information or calibration.

Applications for the Micro TX module:

☞ Indoor household Nitrogen Dioxide pollution monitoring
☞ Indoor Nitrogen Dioxide pollution monitoring (office, rooms, shopping
malls, airports, train stations, gyms, hotels:)
☞ Air quality monitoring on small drones
☞ Indoor temperature and humidity weather monitor

Features of the Micro TX module:

☞ High accuracy and long life
☞ Fast response speed, fast return to zero, plug and play
☞ Good anti-toxicity
☞ Easy to use, UART digital signal output
☞ Durable and reliable
☞ Excellent accuracy, repeatability, linearity and consistency
☞ Zero drift
☞ Strong anti-electromagnetic interference ability
☞ With fixed mounting holes for easy installation
☞ Sleep design for low power IOT applications
☞ Independent temperature and humidity digital sensor output
☞ RoHS environmental design
