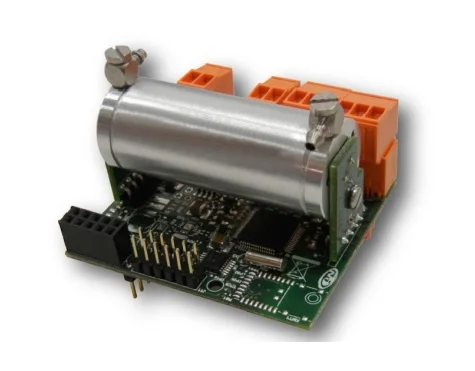

Infrared CH4 / Hydrocarbons GasSense NDIR sensor with integrated digital & analogue output transmitter

Product Code: 2112B5022-CH4

Quick Overview

Infrared high specification CH4 and Hydrocarbons GasSense NDIR sensor with integrated digital & analogue output transmitter. Ranges: 0-2000ppm, 0-100% LEL or  0-100% volume CH4



Add to enquiry

Details

Infrared high specification CH4 and Hydrocarbons GasSense NDIR sensor with integrated digital & analogue output transmitter.

Power supply: 9.0 – 24.0V d.c.

Measuring Ranges:
CH4: 0-2000ppm, 0-100% LEL or  0-100% volume CH4
Optional CH4: 0-100% volume for biogas applications in corrosion-proof cell and housing.
Other Hydrocarbon calibrations available (please ask us for quotation): 0-2000ppm or 0-100% LEL.

Sensor sizes: depending on range and version

Part no: 2112B5022

  • Integrated digital and analogue (voltage) standard output
  • Incorporated signal linearisation and temperature compensation suited for manufacturers without any specialist knowledge in IR technology
  • Fast response
  • Robust construction with option of corrosion-proof sensor cell and housing, for applications including biogas.
  • Wide operating temperature and humidity range
  • Low power consumption
  • Wide range of measurement options.
  • Smart sensor suitable for wireless applications.

The GasSense NDIR gas sensor, with integrated transmitter, is an innovative measurement module for the detection of CO2, CO, N2O, CH4 or related hydrocarbons. The sensor can be easily integrated as an OEM component into controls, measurement systems and monitoring instruments.

The sensor uses dual channel Non-Dispersive Infrared Detection (NDIR) and detects the net increase or decrease of light that occurs at the wavelength where absorption of the detecting gas takes place. The light intensity is then correlated to gas concentrations.

To ensure a reliable and stable measurement, the module is temperature compensated. The gas cell has been designed using non-sequential ray tracing techniques in order to ensure the best compromise between accuracy and sensor dimensions. Additionally, a dedicated rugged gas sensor cell option is available to minimise corrosive effects in harsh industrial environments, like biogas applications. The GasSense electronic board features a native wireless module managed with Ultra Low Power techniques, a fault diagnostics system and a power module suited to manage charging and energy recovery systems. The GasSense sensor can be used with a pneumatic pump or can simply work by natural diffusion mode.
