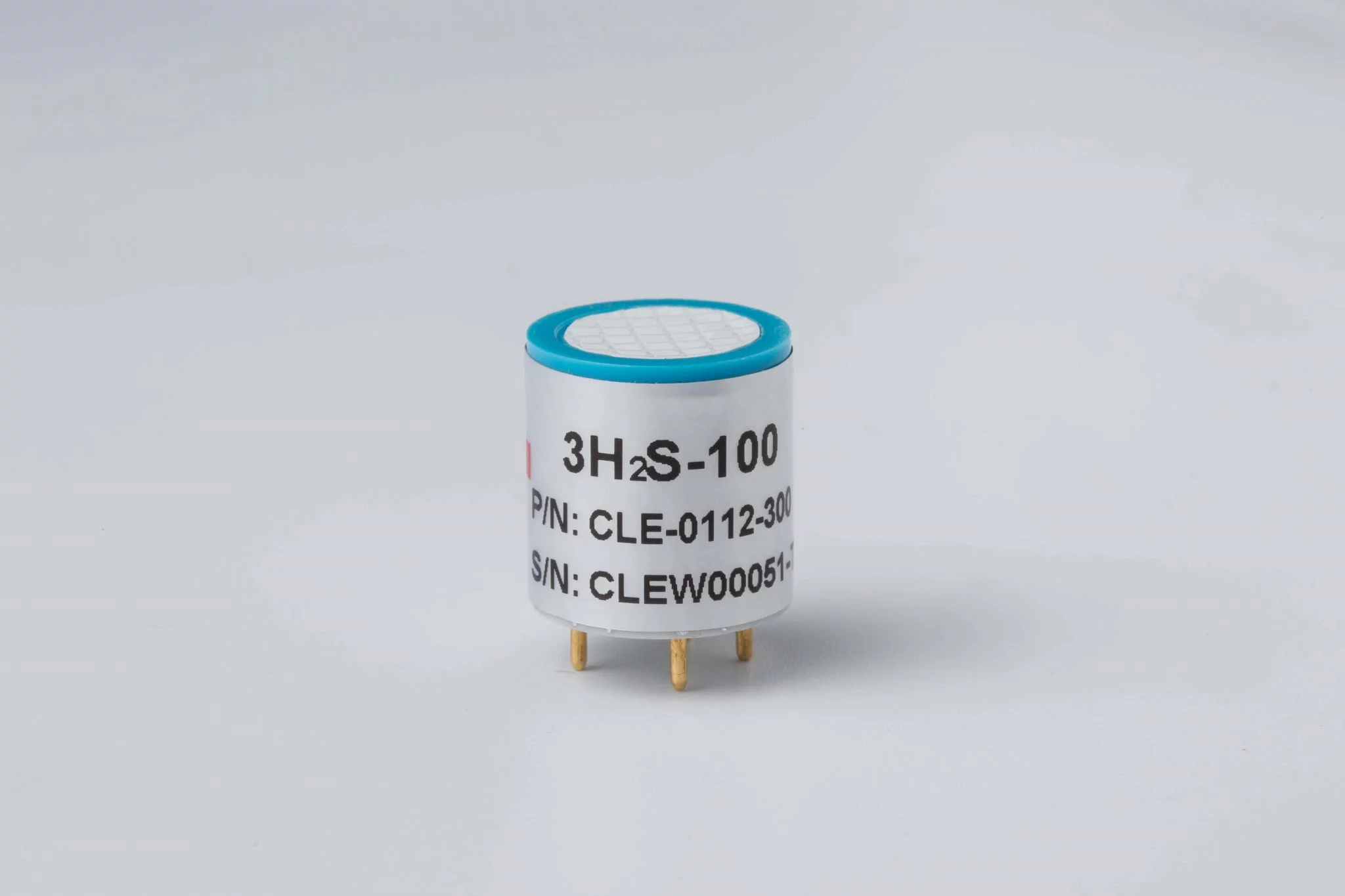

3-H2S-100 Hydrogen Sulphide H2S Gas Sensor, 0-100ppm

Product Code: 2112B0112300

Quick Overview

3-H2S-100 Hydrogen Sulphide H2S gas sensor, 0-100ppm H2S, compact size

Add to enquiry

Details

3-H2S-100 Hydrogen Sulphide H2S gas sensor, small compact size

Measuring Range: 0-100ppm H2S. Maximum Overload: 500ppm H2S

Size: 3 mini series size

Part no: 2112B0112300 (CLE-0112-300)

DOWNLOAD DATASHEET

With two year expected operating life, this low range, compact sized sensor offers resolution of 1ppm and T90 response time of < 30 seconds. Sensor output current is proportional to H2S concentration in ppm range. This sensor has particular advantage of being a small compact size.

Note: The graphic of this sensor is an example only and sensor cap/body colour may vary depending upon gas sensor type ordered or manufacturing modification. Please refer to individual datasheet for detailed information on this sensor and its dimensions.

Available options:

– 4 series, 7 series and mini H2S sensors – 0-50ppm H2S, 0-100ppm H2S, 0-200ppm H2S, 0-1000ppm H2S

– SureCell H2S sensors

– SureCell H2S(L) 4-20 mA transmitter including sensor, 0-200ppm H2S

– SureCell H2S transmitter installation kit (part no. 2112B1022)

– H2S gas measuring system – SureCell H2S sensor, 4-20 mA transmitter and installation kit in aluminium housing, 0-200ppm H2S

– i2c and voltage pluggable transmitters with 4 series H2S sensors and choice of precalibrated options
