Hydrogen Sulphide H2S (L) SureCell 4-20mA Transmitter, 0-200ppm

Details

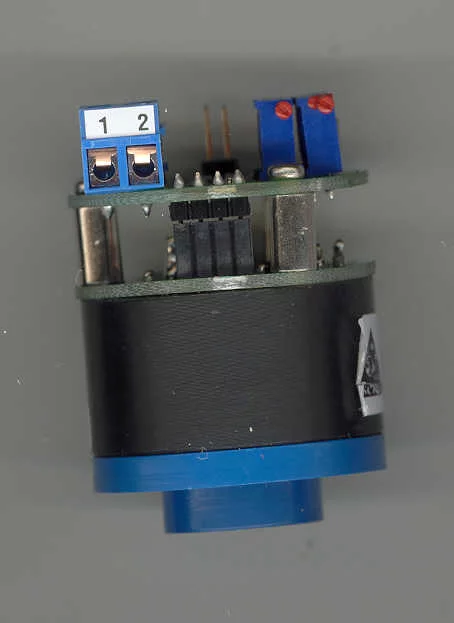

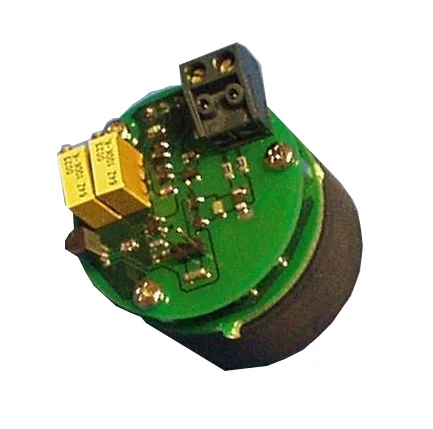

Hydrogen Sulphide H2S 4-20 mA transmitter including SureCell (L) sensor, ideal for industrial applications.

Measuring Range: 0-200ppm H2S

Size: 4 series sensor included

Part no: 2112B1015

Power supply: 24Vdc. Output: 4-20mA

The 4-20mA transmitter offers a fast and accurate solution for the measurement of H2S and is ideal for industrial applications. This solution includes the SureCell (L) H2S gas sensor; the next generation of OEM gas sensors from Sixth Sense and available as single sensors, in combination with this 4-20mA transmitter or as a complete housed solution.

SureCell is a revolutionary design of high performance electrochemical gas sensor. The unique features of SureCell and the potential advances for end product performance, make SureCell a truly cost-effective solution for gas detection equipment manufacturers and installers.

Based on over 30 years of R&D, SureCell embodies a number of technological advances to offer unprecedented performance in even the harshest environmental conditions:

• The unique internal construction of SureCell ensures indefinite operation in extreme temperatures and humidity.
• Even during extended periods of exposure to high humidity, there is no leakage potential or signal loss.
• Further design features provide reduced cross-sensitivity and increased stability.
• Improvements in mechanical design ensure SureCell is high quality, reliable and dependable.
• Advanced production processes result in a sensor that is both cost effective and available in high volumes.

Note: Please refer to individual datasheet for detailed information on this item.

Available options:

– SureCell H2S (L) gas sensor, 0-200ppm H2S (part no. 2112B2021)

– SureCell H2S (L) transmitter installation kit (part no. 2112B1022)

– H2S gas measuring system – SureCell H2S (L) sensor, 4-20 mA transmitter and installation kit in aluminium housing, 0-200ppm H2S (Optional: 0-100ppm) (part no. 2112B1016)

– SureCell H2S (M) sensor, 0-100ppm H2S (part no. 2112B2022)

– SureCell H2S (H) sensor, 0-100ppm H2S ( part no. 2112B2023)
