AQ3STF Air Quality Sulphur Dioxide Gas Sensor with Module Option 0-5ppm SO2

Details

AQ3STF Sulphur Dioxide Air Quality Gas Sensor with precalibrated Module Option.

Sensor only:
Measuring Range: 0-5ppm SO2. Maximum Overload: 10ppm SO2
Size: 3 series
Part no: 2112BADQ045-H04

Sensor with precalibrated module option:
Measuring Range: 0-5ppm SO2. Maximum Overload: 10ppm SO2
Size: 3 series
Part no: 2112BQAD045-H04

The AQ3STF is specially designed for air quality and environmental monitoring. It offers high sensitivity for ppb detection, with resolution of 5ppb when used with recommended circuitry. There is also a precalibrated module option available.

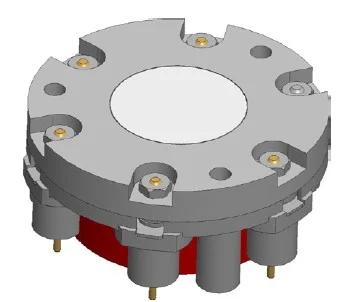

AQ3STF Sensor only:
Sulphur Dioxide SO2 Gas Sensor, 4-electrode, 3 series size, highly sensitive for ppb detection, 0-5ppm SO2 (10ppm CO over-range).
Resolution: 5ppb when used with recommended circuitry.
Lowest Detection Limit (LDL): 10ppb.

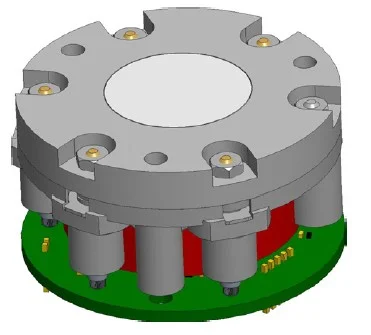

AQ3STF Sensor with precalibrated module option:
Sulphur Dioxide SO2 Gas Sensor complete with transmitter board, highly sensitive for ppb detection, 0-5ppm SO2 (10ppm SO2 over-range).
Custom-built low noise board achieves high accuracy under ppb level.
Resolution: 5ppb.
Lowest Detection Limit (LDL): 10ppb.

Note: Graphics of these sensors are an example only and sensor cap/body colour may vary depending upon gas sensor type ordered or manufacturing modification. Please refer to individual datasheets for detailed information on these sensors and their corresponding dimensions.
