AQ3ND Air Quality Nitrogen Dioxide Gas Sensor 0-1ppm NO2

Details

AQ3ND Nitrogen Dioxide Air Quality Gas Sensor. Also available with precalibrated Module Option.

Sensor only:
Measuring Range: 0-1ppm NO2. Maximum Overload: 5ppm NO2
Size: 3 series
Part no: 2112BAGQ004-300

Sensor with precalibrated module option:
Measuring Range: 0-1ppm NO2. Maximum Overload: 1.5ppm NO2
Size: 3 series
Part no: 2112BQAG004-300

The AQ3ND is specially designed for air quality and environmental monitoring. It offers high sensitivity for ppb detection, with resolution of 10ppb when used with recommended circuitry. There is also a precalibrated module option available.

AQ3ND Sensor only:
Nitrogen Dioxide NO2 Gas Sensor, 4-electrode, 3 series size, highly sensitive for ppb detection, 0-1ppm NO2 (5ppm NO2 over-range).
Resolution: 10ppb when used with recommended circuitry.
Lowest Detection Limit (LDL): 10ppb.

AQ3ND Sensor with precalibrated module option:
Nitrogen Dioxide NO2 Gas Sensor complete with transmitter board, highly sensitive for ppb detection, 0-1ppm NO2 (1.5ppm NO2 over-range).
Custom-built low noise board achieves high accuracy under ppb level.
Resolution: 10ppb.
Lowest Detection Limit (LDL): 10ppb.

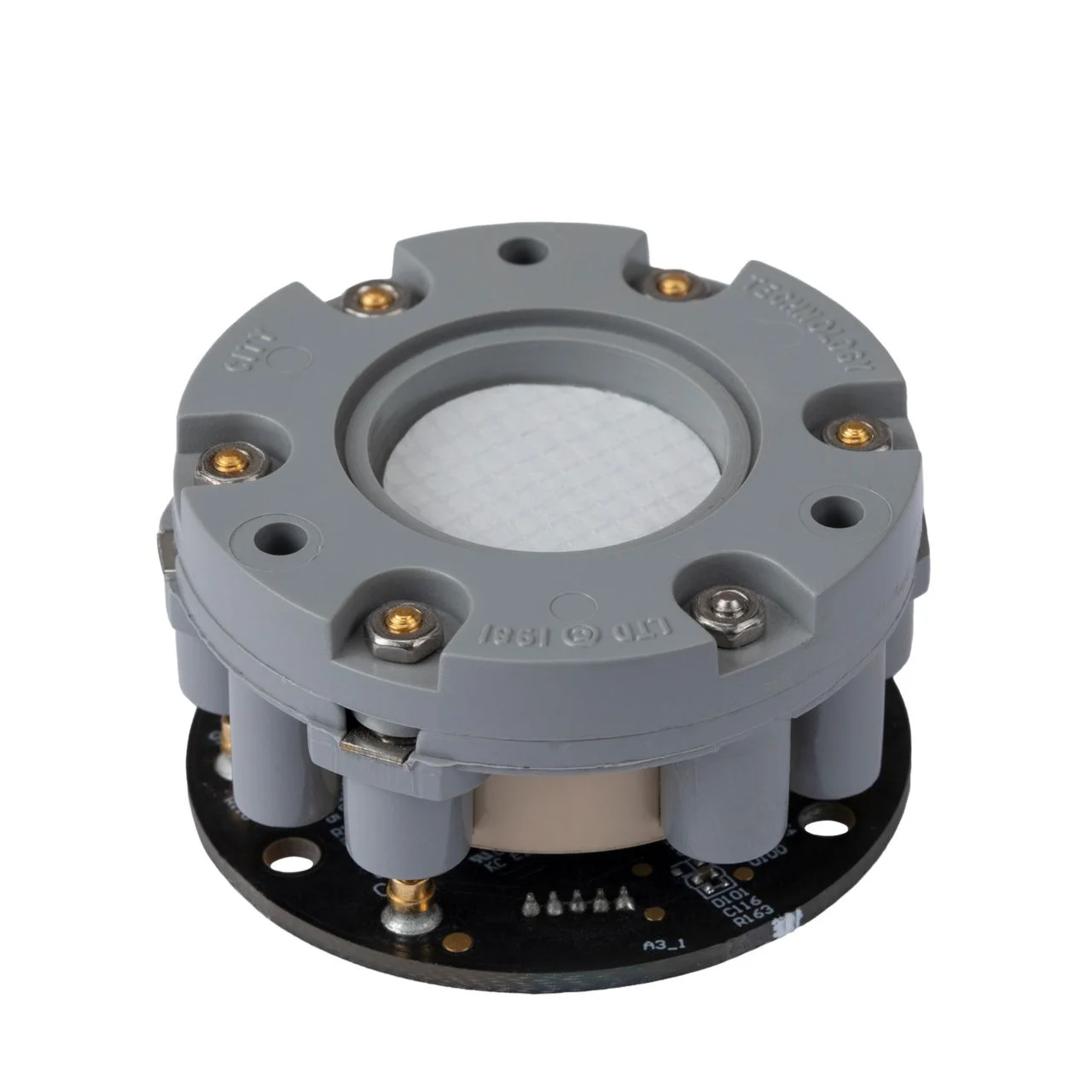

Note: Graphics of these sensors are an example only and sensor cap/body colour may vary depending upon gas sensor type ordered or manufacturing modification. Please refer to individual datasheets for detailed information on these sensors and their corresponding dimensions.
