Accessories – Test Gas Cap for C3 CO2 Transmitters

Details

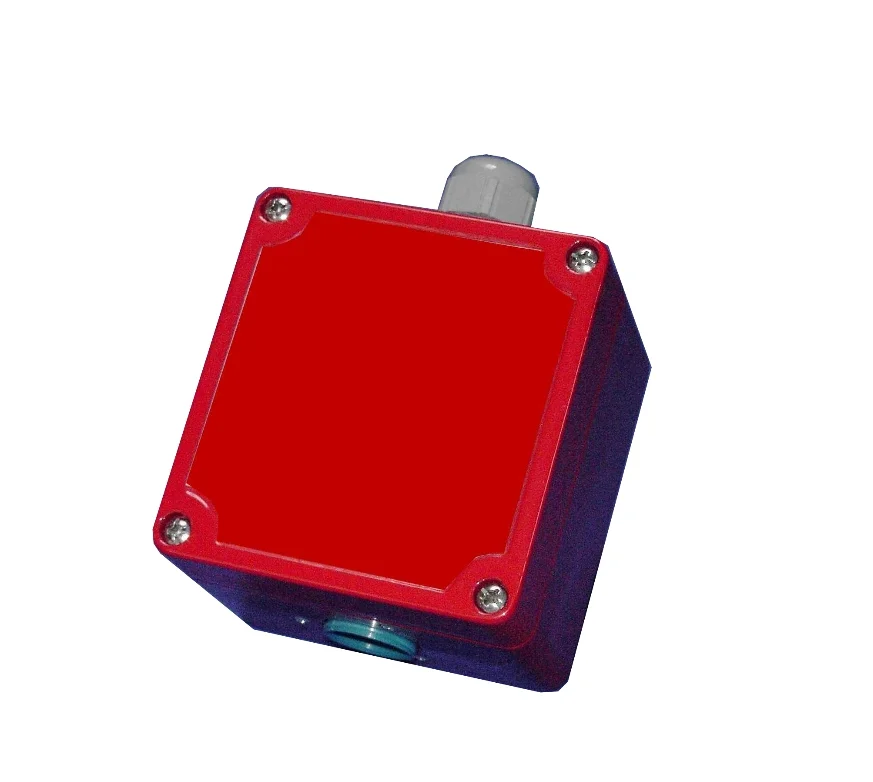

Carbon Monoxide CO Gas Measuring System – ECO-Sure LXH version CO sensor (with low Hydrogen cross-sensitivity), 4-20mA transmitter and installation kit in aluminium housing. PG11 cable gland.

Measuring Range: Standard: 0-300ppm CO. Optional: 0-200ppm CO

Size: Includes 4 SERIES sensor

Part no: 2112B1014

Power supply: 12V d.c.  Output: 4-20mA

The Carbon Monoxide CO gas measuring system determines the concentration of CO gas in the air at ambient temperatures of -20° C to +45° C. The housing is made of aluminium and suitable for wall mounting, providing an easy solution for the measurement of Carbon Monoxide.

Basic processing and output of the measured values (linear output, 4-20 mA) are integrated into the measuring system. Evaluation and further processing of the measured values occur in downstream devices selected by the user (for example, ventilation systems, limit monitors, display, programmable logic controllers).

The sensor featuring in this Gas Measuring System is the LXH CO sensor with low Hydrogen cross-sensitivity. The 4-20mA transmitter offers a fast and accurate solution for the measurement of CO, where it is important to utilise a CO sensor with low Hydrogen cross-sensitivity. Example applications include monitoring of smoking in public places, such as toilets and cloakrooms, where standard sensors in CO detectors may cause false alarms through spray perfumes and aftershaves.

The LXH sensor is one of the latest generation CO sensors from Sixth Sense, specifically designed for use in consumer and commercial applications. It is commonly used in CO breath monitors as part of ‘stop smoking’ programmes by health agencies worldwide.

Note: Please refer to individual datasheet for detailed information on this item.

Available options:

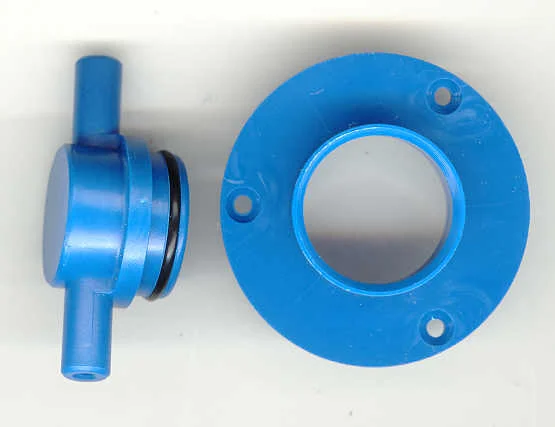

– Test/calibration gas cap (part no. 2112B1010)

– Gas detection controller (part nos. 2112BGWZ-S2/-S4/-S6)

– MODBUS card (part nos. 2112B1050/2112B1055)

– Replacement gas sensor transmitter module (part no. 2112B1006)

– LXH gas sensor, 0-300ppm CO (part no. 2112B3008)
